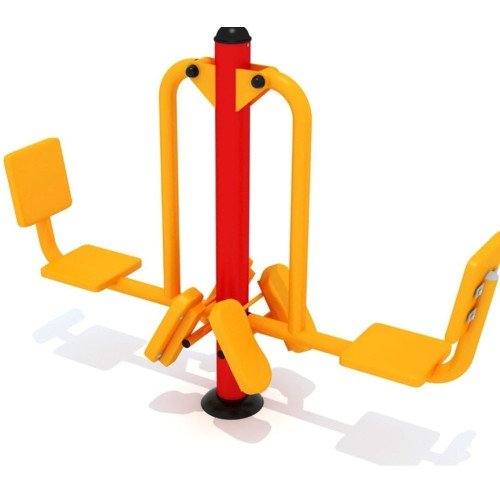

Leg Press (Outdoor Gym Equipment)

Frame Specifications

• Main Upright Structure: 4 Inch OD Heavy Duty MS Pipe
• Pipe Thickness: 3.2 mm to 4 mm
• Supporting Frame: 2 Inch & 2.5 Inch ISI Marked MS Pipe
• Material Grade: IS 2062 Mild Steel
• Welding: CO₂ MIG Welded Construction
• Finish: Seven Tank Process with Outdoor Grade Powder Coating

Dimensions

• Length: Approx. 1500 mm
• Width: Approx. 700 mm
• Height: Approx. 1800 mm
• Installation Area Required: Minimum 2200 mm × 1800 mm
• User Capacity: Single User

Seat & Backrest

• Ergonomically Designed Seat
• Heavy Duty FRP / LLDPE Seat
• UV Stabilized Material
• Weatherproof and Crack Resistant
• Comfortable Back Support

Foot Press System

• Heavy Duty Foot Platform
• Anti-Skid Footrest Surface
• Smooth Pressing Motion
• Reinforced Leg Press Mechanism
• Safe and Controlled Range of Movement

Bearing & Pivot System

• Heavy Duty Maintenance-Free Bearings
• Precision Machined Pivot Assembly
• Dust-Protected Bearing Covers
• Smooth and Silent Operation

Foundation Details

• Installation Type: In-Ground Fixed Foundation
• RCC Foundation Required
• Foundation Size: 450 mm × 450 mm × 600 mm Deep (Minimum)
• Base Plate: 10 mm Thick MS Plate

Surface Treatment

• Complete Anti-Rust Treatment
• Zinc Rich Primer Coating
• Outdoor UV Resistant Powder Coating
• Weatherproof Finish Suitable for All Climatic Conditions

Exercise Benefits

• Strengthens Quadriceps Muscles
• Develops Hamstrings and Calf Muscles
• Improves Lower Body Strength
• Enhances Knee and Hip Joint Mobility
• Increases Muscle Endurance
• Supports Overall Fitness and Rehabilitation
